Post-etching cleaning influences the resin shear bond strength to CAD/CAM lithium-disilicate ceramics


Statement of problem

The hydrofluoric acid (HF) is able to promote selective dissolution of the glassy phase in silica-based ceramic. However, the etching leaves insoluble silica-fluoride salts in the surface that affects negatively the bond, affirming the need of a post-etching cleaning.


Evaluate the shear bond strength (SBS) of composite resin to CAD/CAM lithium-disilicate ceramics after different post-etching cleaning and silane treatments.


Twenty-four 2 mm-thick slices of IPS e.max CAD (Ivoclar Vivadent, AG, Schann, Liechtenstein) were crystallized, embedded in acrylic resin, polished and cleaned in an ultrasonic bath. Each specimen was etched with 5% HF for 20 s, rinsed for 60 s, and treatment was completed using surface cleaning and silanization. The cleaning methods were: AW—air/water spray; UB—ultrasonic bath; PA—37% phosphoric acid; and ST—steam cleaning. The cleaned surface received: E—no silane treatment; E/S—silane application for 20 s, air drying for 20 s and hot drying (60 °C) for 20 s; E/S+—silane application for 60 s, air drying for 20 s, hot air drying (60 °C) for 20 s, rinsing with boiling water for 15 s and hot air drying for 20 s. Cylinders of composite resin (n = 12) (Z100, 3M-ESPE, Saint Paul, MN, USA) were bonded using an adhesive resin (Optibond FL adhesive, Kerr Corp, Orange, CA, USA). SBS testing was carried out after 24 h of storage in water. Samples for each post-etching cleaning regimen were analyzed by SEM.


According to two-way ANOVA (Bonferroni-corrected post hoc tests, p < 0.05), the SBS was significantly influenced by the post-etching cleaning, with UB yielding the highest SBS (21 MPa for E/S); other post-etching cleaning regimens showed lower SBS values (12–17 MPa). The type of silane application was not significantly different. The SEM analysis showed a cleaner ceramic surface for UB when compared to the other groups.


Etching lithium disilicate ceramics following by ultrasonic bath cleaning and regular application of a silane is recommended.


Bonding to silica-based ceramics requires micro mechanical (hydrofluoric-acid, HF-etching) and chemical (silane) coupling [1,2,3,4,5]. The HF-etching provides dissolution of the glassy and/or crystalline phase [6], forming tetrafluorosilane, which further reacts with HF to form a soluble hydrofluorosilicic acid that dissolves the glassy matrix. As a consequence, a micro-retentive and high energy surface is obtained [7,8,9]. On the other hand, the coupling molecule, γ-methacryloxypropyl trimethoxysilane, an organofunctional silane, works like a bridge with two different reactive functional groups. The silane molecule can chemically bond to the hydrolyzed silicon dioxide at the ceramic surface (–Si–O–Si– siloxane bond) and the methacrylate group can copolymerize with the adhesive resin [5, 10]. Silane coupling agents allow improved resin wettability of the etched ceramic surface and provide a covalent bond with the methacrylate groups in the resin and the ceramic surface [4, 5]. The stability and effectiveness of this adhesion can be enhanced by heat treatment [4, 11,12,13,14] or optimized silane application [15, 16]. Optimal silane application implies the elimination of water, alcohol and other solvents, allowing for the complete condensation reaction to form the siloxane bond (heat treatment) and eliminate excess silane oligomers to obtain a monolayer of silane (hot water rinsing) [4, 15,16,17].

HF-etching is known to leave residual salts of silica fluoride that precipitate [18,19,20] and can be identified as a white deposit on the etched ceramic surface. Leaving this debris could negatively influence the resin bond strength [21, 22]. Several cleaning methods have been suggested to remove those debris, including ultrasonic cleaning in distilled water, 95% alcohol or acetone [19, 21, 22]. Some authors have described the association between brushing the surface with phosphoric acid and immersion in an ultrasonic bath to remove the crystalline debris from the etched surface [21]. It is agreed that the resistance of the resin-ceramic adhesion zone is controlled primarily by the microstructure and surface treatment of the ceramic [6, 22, 23]. Each new material or product must therefore be studied individually to define the optimal bonding protocol. Lithium-disilicate ceramics are among those new materials that have been marketed with great success and deserve special attention for increasing the limited knowledge database regarding optimal resin bonding techniques.

The purpose of this study was to evaluate the influence of different post-etching cleaning and silane application techniques on the resin shear bond strength (SBS) to CAD/CAM ceramics (IPS e.max CAD). The first null-hypothesis tested was that there would be no difference between the post-etching cleaning techniques investigated. The second null-hypothesis was that the silane treatment would have no significant influence on the bond strength of composite resin to lithium disilicate CAD/CAM ceramics.


Twenty-four slices (14 × 16 × 2 mm) of IPS e.max CAD LT A2/C14 (EMAX; Ivoclar Vivadent, AG, Batch R28294) were obtained by sectioning CAD/CAM blocks using a slow-speed diamond water-cooled saw (Isomet, Buehler). The slices were crystallized in a ceramic furnace (Austromat 624; DEKEMA Dental-Keramiköfen GmbH) following the manufacturer’s instructions. The slices were embedded in an acrylic resin positioning base (Palapress; Heraeus Kulzer, GmbH) and polished manually with 400- and 600-grit silicon carbide paper under water cooling. The surface of all specimens was then cleaned in an ultrasonic bath with distilled water for 5 min. All specimens were HF-etched (IPS Ceramic Etching Gel, Ivoclar Vivadent— < 5%) for 20 s, rinsed for 60 s with air/water spray (40 psi/2,76BAR) followed by post-etching cleaning and silanization. Four different post-etching cleaning methods were compared: AW—air/water spray, no post-etching cleaning; UB—immersion in ultrasonic bath with distilled water for 2 min; PA—application of phosphoric acid (37%) for 30 s, followed by rinsing with water; or ST—steam cleaning (AX-SCA dental steam cleaner) for 10 s at 4–5 bars and a 10 cm distance. For each post-etching cleaning method, two silane application methods were used: E—no silane treatment; E/S—silane (Silane, Ultradent) applied for 20 s and air dried for 20 s, hot dried at 60 °C for 20 s; or E/S+—silane applied for 60 s, air dried for 20 s and hot air dried 60 °C for another 20 s (with hair dryer at 10 cm-distance), rinsed with boiling water for 15 s and hot air dried for 20 s.

The conditioned ceramic slices were placed in a positioning device and a Teflon mold (Ultradent Jig) containing a 0.04448 cm2 bonding area was used to build composite resin cylinders. First, an adhesive resin (Optibond FL Adhesive, Kerr Corp.) was applied to the ceramic, then the restorative composite resin, Z100 (3M ESPE), was inserted into the mold in two increments of approximately 1.8 mm each using a small condensing spatula. Each increment was light polymerized for 20 s (Valo, Ultradent) at 1000 mW/cm2. Six resin cylinders (diameter: 2.4 mm) were built onto each ceramic slice (length: 15 mm, width: 4 mm, thickness: 2 mm), 3.5 mm apart, resulting in 12 specimens per group. After 24 h storage in distilled water, the samples were submitted to SBS testing (Shear Bond Tester; Bisco Inc.) using a ramp load of 43.8-kg-force per minute. The failure mode was assessed by macrophotography (Nikon D60 and Sigma Lens 105 mm).

An additional etched ceramic slice was produced for each post-etching cleaning regimen and analyzed by SEM.

Statistical analysis

The Shapiro–Wilk test was applied to each group (post-etching cleaning and silane) and between the experimental groups to verify the normality (p = 0.200). Homogeneity of the variance of Levene (α = 0.05) was achieved (p = 0.387). The mean bond strength and standard deviation were calculated for all groups. Statistical analysis was performed using a two-way analysis of variance (ANOVA), in which post-etching cleaning and silane application methods served as independent factors. The Bonferroni post hoc test was used for equal variances to test the average values of all groups. The significance level adopted in all analyses was ≤ 0.05 (p < 0.05) (MedCalc Software for Windows version 12.3.0).


According to two-way ANOVA and Bonferroni post hoc (p < 0.05) (Table 1), the SBS was influenced significantly by the type of post-etching cleaning, with UB yielding the highest SBS (E/S = 21 MPa when combined with silane) (p < 0.001). Other post-etching cleaning methods (AW, PA, and ST) showed lower SBS values (12–17 MPa, independent of the silane technique) (p < 0.001). The type of silane application was not significantly different. The factorial interaction was significant, showing that the effectiveness of the cleaning method was influenced by the silane application technique (Table 2). The failure mode was always adhesive, leaving a clean ceramic surface (Fig. 1).

Table 1 Two-way ANOVA for experimental groups
Table 2 Mean SBS value in MPa (SD)
Fig. 1
figure 1

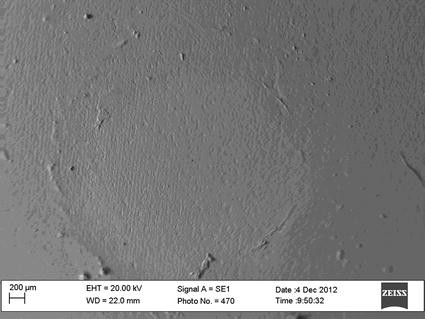

Adhesive failure

The SEM analysis of etched ceramic slices showed a cleaner surface when UB was used as a post-etching cleaning. The other groups, AW, PA and ST, showed residues deposited on the ceramic surface (Figs. 2, 3, 4 and 5).

Fig. 2
figure 2

UB sample

Fig. 3
figure 3

ST sample

Fig. 4
figure 4

AW sample

Fig. 5
figure 5

PA sample


The results of this study lead to the rejection of the first null-hypothesis, since post-etching cleaning methods had an influence on the SBS of lithium disilicate ceramics. The second null hypothesis was accepted, as the SBS values were not influenced by the various silane application techniques.

The bonding strength between the resin luting agents and the ceramic can be measured in vitro using several methods (shear, micro-shear, tensile and microtensile). The principle of those tests is to apply a load that creates stress at the adhesive interface until failure is observed. However, none of these tests are accepted as a universal method and each of them have their own advantages and limitations. In this regard, the microtensile bond strength (MTBS) test is usually preferred because it generates uniform stress distribution across the adhesive interface [24], limiting the possibility of cohesive failure of the substrate [25]. Despite those advantages, MTBS is a technique-sensitive method, it can present a high frequency of premature failures [26], it can be affected by cutting speed [27], shape of the sample [28] and the brittleness of the substrate [27, 28]. On the other hand, the SBS test is considered the most common and practical bond test, as it avoids the steps of specimen sectioning and trimming, which can introduce early micro-cracking of brittle substrates [27,28,29]. As a result, some authors have concluded that a shear approach was more appropriate when compared to a microtensile approach [30, 31]. In this present study, the SBS testing method was selected since the substrate was strong enough to prevent cohesive failures. Strengthened ceramic substrates, such as zirconia and lithium-disilicate, can be deemed appropriate for testing resin bond strength using SBS tests.

It is accepted that conditioning of lithium disilicate by HF-etching requires a shorter etching time and HF concentration (20 s, 5% HF) possibly because of the reduced crystal size; the less glass in the ceramic to be removed and also since excessive etching might cause a weakening of the ceramic substrate [23]. Dissolution of the vitreous phase creates 5–20 µm-deep micro-retentions [22, 24, 32, 33] that can be resin-infiltrated [22]. Micromechanical retention generated by HF-etching seems to be the main mechanism for bonding to lithium disilicate ceramics [4]. Additional use of silane did not seem to bring any benefit, unless ultrasonic post-etching cleaning was used. Maybe the usage of the silane didn’t show statistical difference due to the presence of insoluble salts in the surface. Insoluble salts may interfere in the interaction between the silane and the silica, leading to lower bond strength values, not because the silane does not need to be used. So it will require an adequate cleaning of the surface before the use of the silane. The side effect of HF-etching is the formation of insoluble residual salts that precipitate and obliterate microretentions [18,19,20, 22], which may significantly influence the bond strength values [18, 22], confirming the need for post-etching cleaning [21, 22]. Most authors support the post-etching protocol used in this current study (ultrasonic distilled water bath for 2 min) to provide effective residue elimination [19, 21, 34]. One study failed to demonstrate the effectiveness of post-etching ultrasonic cleaning [35], although this can be explained by the fact that specimens were placed in the ultrasonic bath for 20 min, which may have caused weakening or disaggregation of the etched porcelain. In another study, post-etch cleaning led to a 100% increase in MTBS (24 MPa without cleaning vs. 50 MPa with cleaning). In the present study, the maximum gain from post-etching cleaning was only 30% (from 14 MPa up to 21 MPa). This could be explained by the small amount of residue observed on the etched surface of lithium disilicate ceramics [22], possibly due to the reduced vitreous content [6, 36] and the reduced time for etching. The other post-etching cleaning techniques used in this present study (air/water spray, phosphoric acid or steam) performed similarly and did not improve or reduce bond strength, which is in agreement with Swift, Walls and McCabe [37].

The use of a silane coupling agent induces encapsulation of the etched protruding crystals [24] and allows for continuity between the organic and inorganic phases [5, 10]. According to Hooshmand et al. [15]. and Queiroz et al. [16], application of a silane induces the formation of a complex interphase with several distinctive layers. The layer closest to the substrate is a monolayer of coupling silane, the only layer necessary for optimal bonding. It is usually covered by two consecutive layers of oligomers, a first layer which can be hydrolyzed only by hot water and a second layer of loosely bound oligomers that can be removed by water at room temperature. Those two outer layers appear to weaken the interphase because of their sensitivity to hydrothermal attacks. The monolayer appears to be chemically reacted (siloxan covalent bond) and can resist hydrothermal attacks. Heat-drying the silane appears to consolidate the three regions by facilitating and stabilizing the siloxane bond. Combining heat drying and hot water rinsing has been advocated by Hooshmand [38] and presented as the optimal silane application technique. The present study did not confirm those results because the optimal silane application was used (E/S+) and did not yield improved bond strength. One possible explanation is the fact that the silane was applied for only 20 s in group E/S (as compared to 60 s in other studies), which may have been too short for the development of the weak outer oligomer layers. The systematic use of heat drying may also have resulted in the consolidation of the silane layers, which could have masked the effect of hot water rinsing.

Even though there seemed to be have been a synergetic effect of post-etching cleaning and the simplified silane application (E/S group), further studies should determine the optimal silane application time that would provide a sufficient number of molecules to saturate the surface of the ceramic (allowing all exposed silica from the substrate to form a siloxane bond) while simultaneously preventing the formation of excess loosely bound silane layers. The application time varies excessively in the informations of most popular products: 5 s for Ceramic Primer (3M), 30 s for Bis-silane (BISCO), and 60 s for Monobond S (Ivoclar-Vivadent) and Silane (Ultradent). The temperature for drying also demonstrates extreme variability both in time and range, 15 s to 2 min., from room temperature to over 100 °C. This calls for guidelines to standardize and define the best practical approach (hair dryer, toaster oven, etc.).

One limitation of this present study was that only one CAD/CAM ceramic was tested and it was not do any aging process. Further research should be carried out to include pressable and stackable porcelain, as well as other CAD/CAM ceramics.


Within the limitation of this study, it was possible to conclude that etching lithium disilicate CAD/CAM ceramics, following by ultrasonic cleaning in distilled water and application of a silane, is important to enhance the adhesion resistance.
