Safety of adhesively bonded joints under detrimental service conditions

Applied Adhesion Science20186:4

https://doi.org/10.1186/s40563-018-0105-4

  • Received: 20 September 2018
  • Accepted: 27 October 2018
  • Published:

Abstract

Durability and safety of adhesively bonded joints are of major importance in structural applications. The probability of failure of a bonded assembly after a certain period of time may be influenced by various aging effects including e.g. temperature and humidity. The correlation of results obtained from accelerated laboratory aging tests to long-term aging under service conditions often remains an unsolved challenge. In the present work, computer-based tools for non-linear regression analysis, estimation of reliability and lifetime prediction have been applied to experimental results obtained by accelerated aging of adhesively bonded shear specimens. Results obtained with an epoxy based adhesive and a hot-dipped galvanized steel as adherend are discussed. The modeling of the aging behavior is performed with combined functions referring to the EYRING as well as the PECK model which both appear appropriate for describing the experimental data. The safety prediction, based on the probability of failure as well as the safety factor β, is performed by using the EYRING model which fits the experimental data in a more conservative manner.

Keywords

  • Adhesively bonded joints
  • Accelerated aging
  • Safety
  • Extrapolation

Introduction

In recent decades the use of adhesively bonded joints in industrial applications has become increasingly important and is replacing conventional joining techniques in many areas. In order to meet sector-dependent safety requirements the aging behavior of adhesively bonded joints needs to be considered. Hereof, aging is defined as a reduction in strength or safety as a function of time caused by external factors including e.g. mechanical stress, temperature and humidity. However, high number of potentially damaging factors on adhesively bonded joints in industrial applications makes it difficult to perform a reliable lifetime prediction while considering all relevant aging factors. Several models for describing degradation have been discussed in literature [18] which allow lifetime predictions as a function of one or two influencing factors, but these models do not consider the statistical variance of experimental data. The aim of this study is to develop a damage function for describing the aging of adhesively bonded joints and prediction of the safety level as a function of the influencing parameters temperature, humidity and load considering the statistical distribution of the experimental data. The development of this function is based on systematic aging studies by combining different models.

Experimental

Materials

In the present work, the single component hot curing epoxy adhesive Betamate® 1496F (Dow Automotive AG, Freienbach, Switzerland) was used to join adherends of hot-dipped galvanized dual-phase steel (DP800Z) (Voestalpine Steel GmbH, Linz, Austria). The epoxy adhesive Betamate® 1496F is used in the automotive industry in order to increase the operation durability, the crash performance and the body stiffness [9]. Hot-dipped galvanized dual-phase steels are commonly used in automotive engineering in complex structural components due to their excellent crash performance and corrosion resistance [10]. In order to represent typical adhesively bonded joints in industrial applications, the epoxy adhesive Betamate® 1496F is combined with hot-dipped galvanized steel exemplarily. The properties of the adhesive are presented in Table 1 and the properties of the adherends in Table 2.
Table 1

Properties of the epoxy adhesive Betamate® 1496F

Young’s modulus (MPa) at 23 °C (ISO 527-1) [11]

1600

Maximum tensile strength (MPa) at 23 °C (ISO 527-1) [11]

32

Glass transition temperature (°C) at tan δ peak, 1 Hz (ISO 6721-1) [12]

105

Table 2

Properties of the hot-dipped galvanized steel (DP800Z) [10], pursant to EN 10346 [13] and EN 10338 [14]

Yield stress (MPa)

440–550

Ultimate strength (MPa)

780

Ultimate strain (%)

14

Specimen manufacturing

Before adhesive application, the steel surface was degreased by manually wiping with acetone followed by an ultrasonic dip-cleaning using a 1:1-mixture of isopropanol and purified water. After chemical surface cleaning the steel adherends were bonded with an overlap length of 10 mm and a sample width of 25 mm using the epoxy adhesive. Since hot-dipped galvanized steel sheets were only available with a limited thickness of 2 mm, laminated shear joints [15] were prepared using spacers adjacent to the test panels while curing in the lamination press. The joint thickness was set to 0.7 mm and the curing was performed at 180 °C for 1 h.

Accelerated laboratory aging tests

In this study accelerated destructive degradation were performed in order to generate an experimental data base for doing a reliable safety prediction for adhesively bonded joints. These tests are used by engineers in the manufacturing industry for many decades in order to acquire reliability information in up-front testing more quickly than in traditional life tests [2, 16]. The accelerated laboratory aging tests of the adhesively bonded shear specimens in this study were performed at 60 °C/95% relative humidity (RH) and 80 °C/95% RH. As reference condition 23 °C/50% RH was used. For all conditions mechanical tensile shear tests were performed before starting the aging and after 4, 8 and 12 weeks at the respective aging condition.

Mechanical tensile shear tests

The mechanical tensile shear tests were performed using a Midi 20-1074x10 (Messphysik Materials Testing GmbH, Fürstenfeld, Austria) universal testing machine with a traverse speed of 0.5 mm/min. Laminated shear joints were used for testing in order to avoid eccentricity when placed in the jigs of the testing machine and to minimize the bending during the tensile shear tests [15]. For all aging conditions five equivalent samples were tested after the respective aging times.

Results and discussion

Accelerated laboratory aging tests

The maximum tensile shear strength in dependence of aging condition and aging time is displayed in Fig. 1.
Fig. 1
Fig. 1

Maximum tensile shear strength τmax in dependence of aging condition and aging time

Figure 1 illustrates that the maximum shear stress decreases significantly at the conditions with high humidity (60 °C/95% RH and 80 °C/95% RH). The slight increase in shear strength observed with samples after 8 weeks of aging at 80 °C/95% RH to 12 weeks is assigned to the relaxation of thermal stress caused by curing at 180 °C and physical aging taking place at temperatures approaching the glass transition temperature. In the case of the reference condition (23 °C/50% RH) the shear stress remains constant over time.

Development of time-, temperature- and humidity-dependent model function

In order to develop a model for predicting time-, temperature- and humidity-dependent progression of aging under climatic conditions the commercial software JMP® (SAS Institute Inc., North Carolina, USA) was used. Since only modeling in dependence of one damaging factor for accelerated destructive degradation is possible, the damaging factors were initially modeled separately from each other. Thus, the temperature dependence was modeled by keeping the relative humidity constant and then the absolute humidity was modeled. Assuming a WEIBULL distribution Eq. 1, which contains an ARRHENIUS term [1], was determined to describe the change in maximum tensile shear stress τmax in dependence of temperature T and time.
$$\log \left( {\tau_{\text{max} } \left( T \right)} \right) = \exp \left( { - 0.16 + 0.53 \cdot \exp \left( { - 0.02 \cdot \exp \left( {0.51 \cdot \left( {\frac{11605}{296.15} - \frac{11605}{273.15 + T}} \right)} \right) \cdot \sqrt {time} } \right)} \right) \cdot 0.97$$
(1)
For the function to describe the change in maximum tensile shear stress τmax in dependence of the absolute humidity AH and time Eq. 2 was chosen.
$$\log \left( {\tau_{\text{max} } \left( {AH} \right)} \right) = \exp \left. {\left( {0.37 + \left( { - 0.14 + 0.14 \cdot \exp \left( { - \frac{AH}{108}} \right)} \right) \cdot \sqrt {time} } \right)} \right) \cdot 0.98$$
(2)
In literature [2, 8] two different procedures are proposed for combining the influences of temperature and humidity in accelerated degradation tests. According to the EYRING model [2] the influences of temperature and relative humidity are linked in the exponential ARRHENIUS term. In contrast the PECK model [8] uses a multiplicative connection of the term for describing the humidity influence and the ARRHENIUS term for describing the temperature dependence. In this study both approaches were examined. Referring to EYRING’s model Eq. 3 was obtained to describe the maximum tensile shear stress τmax in dependence of temperature, absolute humidity AH and time.
$$\log \left( {\tau_{\text{max} } \left( {T, AH} \right)} \right)_{EY} = \exp \left( { - 0.16 + 0.53 \cdot \exp \left( { - 0.02 \cdot \exp \left( {0.51 \cdot \left( {\frac{11605}{296.15} - \frac{11605}{273.15 + T}} \right)} \right) \cdot \left( { - 0.14 + 0.14 \cdot \exp \left( { - \frac{AH}{108}} \right)} \right) \cdot 0.98 \cdot \sqrt {time} } \right)} \right) \cdot 0.97$$
(3)
Likewise, referring to PECK’s model the functions to describe the temperature and humidity dependence are combined as follows:
$$\begin{aligned} \log \left( {\tau_{\text{max} } \left( {T, AH} \right)} \right)_{P} & = \left( {\exp \left( {0.37 + \left( { - 0.14 + 0.14 \cdot \exp \left( { - \frac{AH}{108}} \right)} \right) \cdot \sqrt {time} } \right) \cdot 0.98} \right)^{m} \cdot \\ & \quad \exp \left( { - 0.16 + 0.53 \cdot \exp \left( { - 0.02 \cdot \exp \left( {0.51 \cdot \left( {\frac{11605}{296.15} - \frac{11605}{273.15 + T}} \right)} \right) \cdot \sqrt {time} } \right)} \right) \cdot 0.97 \\ \end{aligned}$$
(4)

The empirical constant m is calculated to be 0.08 by non-linear regression analysis with JMP® software (SAS Institute Inc., North Carolina, USA).

The combined functions based on EYRING and PECK and their ability to describe the change of the measure maximum tensile shear strength values are displayed in Fig. 2.
Fig. 2
Fig. 2

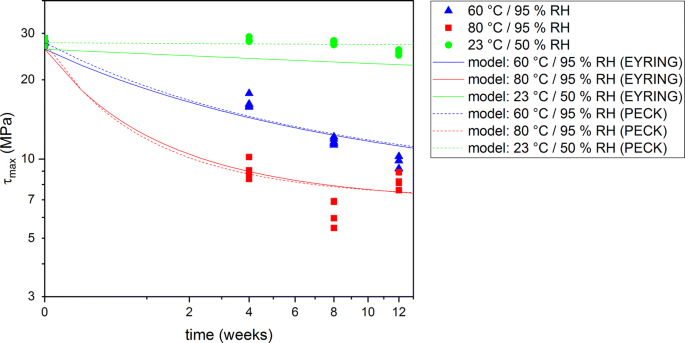

Maximum tensile shear strength τmax (dots) and combined functions to describe the temperature and humidity dependence of the maximum tensile shear strength referring to EYRING (solid line) and PECK (broken line)

Figure 2 illustrates that both the PECK model as well as the EYRING model describe the measured values quite good. They are very similar to each other for describing the change in maximum tensile shear strength for 60 °C/95% RH and 80 °C/95% RH. A significant difference is observed in describing the experimental data for 23 °C/50% RH. The EYRING model is more conservative than the PECK model which is why the following saftey prediction was based on the EYRING model.

Safety prediction for reference condition

In order to predict the failure probability for the reference condition all experimental data of this condition were mathematically shifted in constant distance along the corresponding model line to a freely selectable future point in time. In this study 52 weeks were set exemplarily (Fig. 3). The shifting of the data in constant distance along the model line is based on the assumption that specimes which show a comparatively high tensile shear strength in the observation period will also show a comparatively high tensile shear strength at any future point in time. The respective assumption applies to specimens which show a comparatively low tensile shear strength. Based on these assumptions it is possible to include all experimental data to do a safety prediction for a certain condition considering a reliable variance.
Fig. 3
Fig. 3

Measured maximum tensile shear strength τmax (circles), model function based on EYRING (line) and predicted values at the time of 52 (triangles) for 23 °C, 50% RH

The predicted values for the maximum tensile shear strength after 52 weeks are plotted in a WEIBULL probability plot (Fig. 4).
Fig. 4
Fig. 4

WEIBULL probability plot of 23 °C, 50% RH with predicted values for the maximum tensile shear strength after 52 weeks

Figure 4 illustrates that the predicted values are WEIBULL-distributed within the 95% confidence interval. For a given failure limit which is dependent on the specific case of application, the probability of failure is evident from the WEIBULL probability plot. If the failure limit is for example defined as 22 MPa the failure probability after 52 weeks at 23 °C, 50% RH would be approximately 10%. Furthermore it is possible to calculate the factor of safety β [17] with the WEIBULL parameters given from the WEIBULL probability plot for a certain load.

Conclusion

In this study accelerated destructive degradation tests for tensile shear specimen were performed at three different aging conditions. As reference condition 23 °C/50% RH was used. The maximum tensile shear strength was used to characterize the aging and was modeled with combined functions of temperature and humidity referring to the EYRING model and the PECK model respectively. It became apparent that the EYRING model fits the experimental data in a more conservative manner. This is why the model function based on EYRING was used to predict safety for the reference condition.
